Component Video Cable

Description

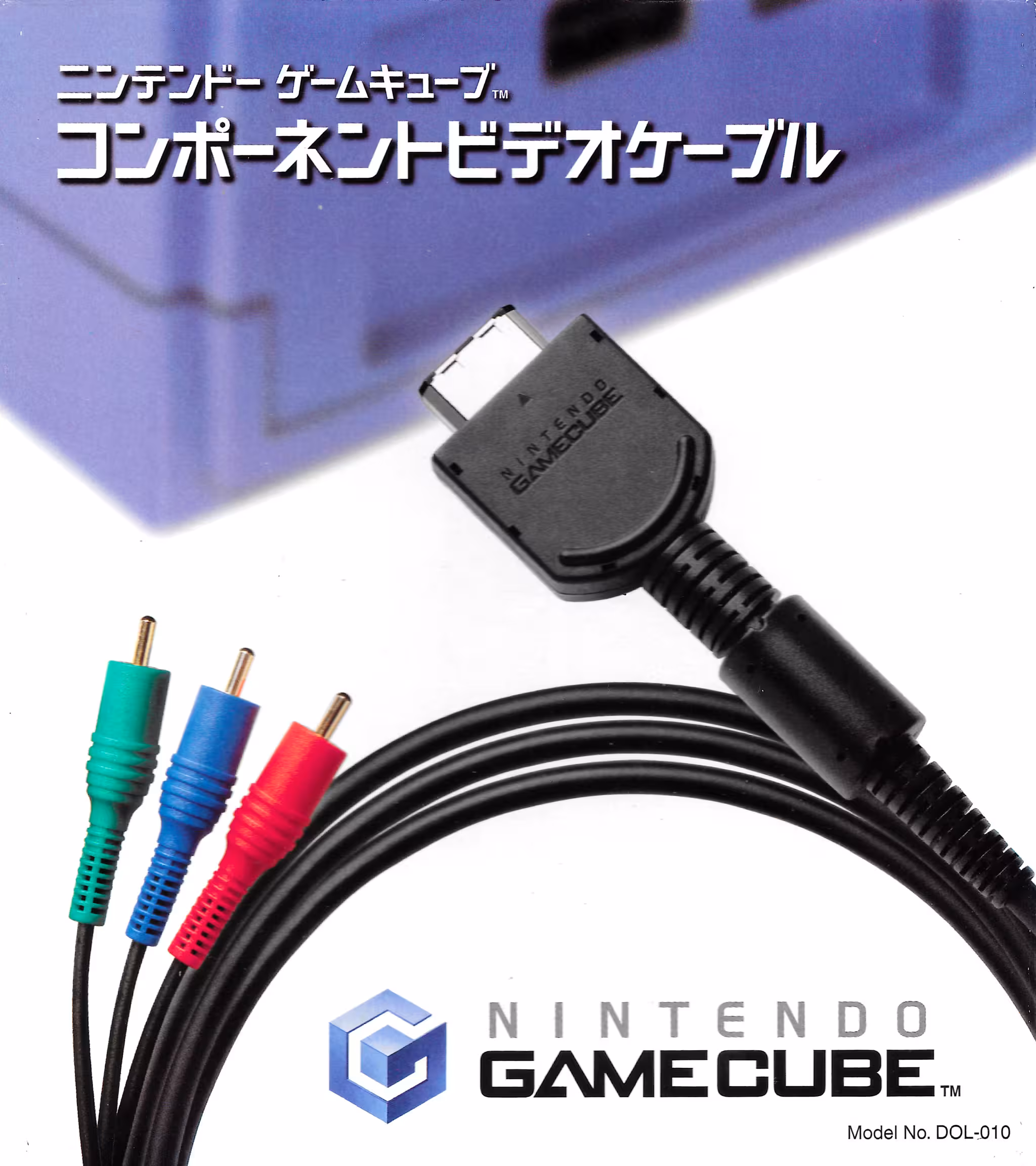

The Nintendo GameCube Component Video Cable (model DOL‑010) was an official accessory released for the original DOL‑001 model of the console, designed to output high‑quality YPbPr component video. Unlike standard AV cables, the component cable contained a digital‑to‑analogue converter chip inside the connector housing, which translated the console’s digital video signal into analogue component output. This allowed supported games to run in progressive scan (480p), offering sharper image quality and reduced flicker compared to composite or S‑Video.

Because the later DOL‑101 revision of the GameCube removed the Digital AV Out port, the cable sought after by collectors. The cable was sold exclusively through Nintendo’s online store in North America and select regions, and it was never widely available at retail. However in Japan it was always easily available on shelves and a no-brainer for anyone who cared about image quality, but apparently that wasn’t a thing in the west until years later.

In Japan, Nintendo also released a functionally identical product in the form of the GameCube D‑Terminal Cable (model DOL‑009). The only difference was the physical connector: instead of RCA component plugs, it used the D‑Terminal interface common on Japanese televisions of the early 2000s. Internally, both cables used the same Macronix DAC chip and provided the same progressive‑scan video quality. I had mine modified to have the chip output RGBHV, effectively VGA, enabling even higher quality.

Since I had some as expensive as it was heavy (120 kg!!!) top-end Sony HDTV, I had several of these cables at the time, and similar for every other console. So it strikes me as odd that they’re retrospectively sought after as this seemed to be just the standard experience back then.
