Mega Drive

Description

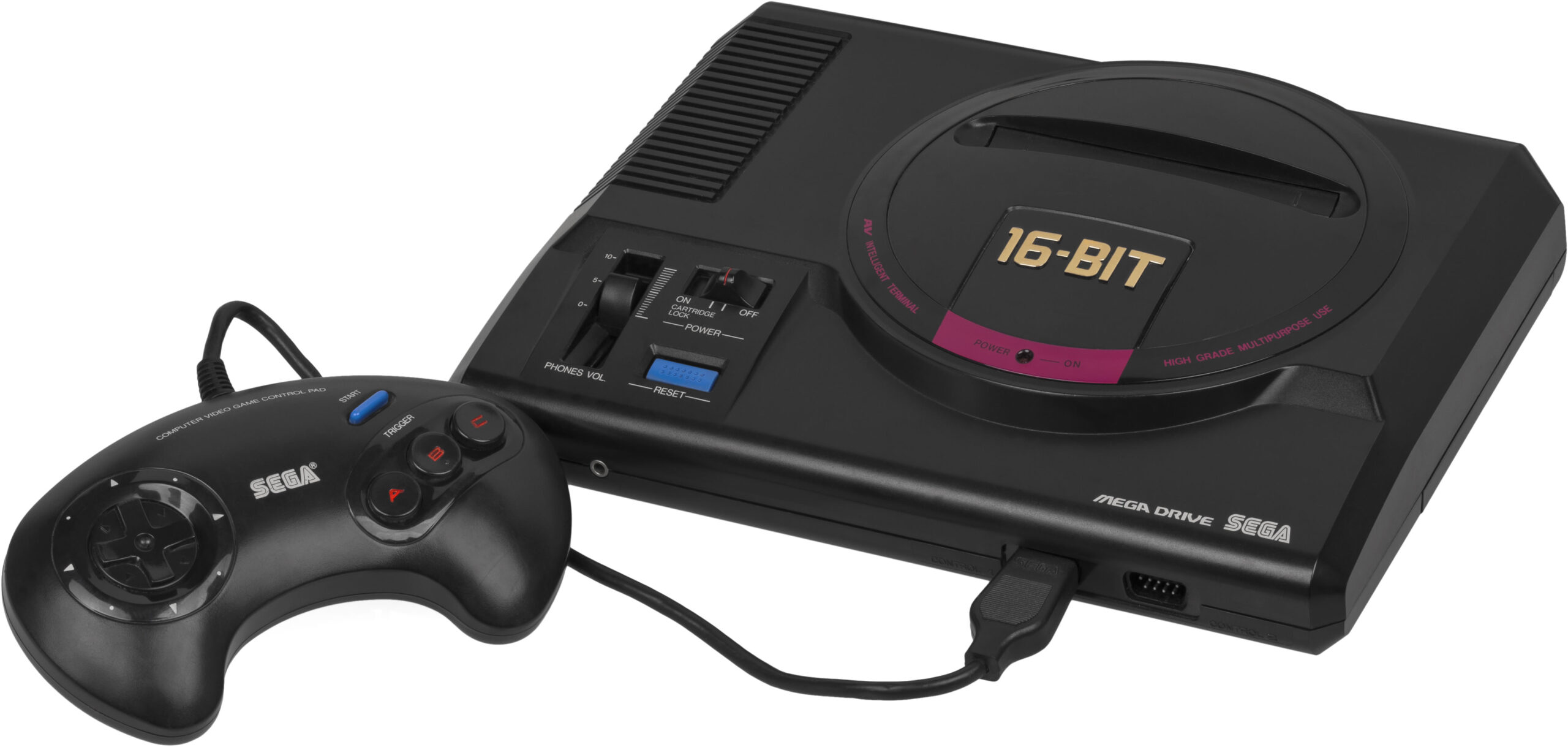

The Mega Drive launch model features a low-profile black chassis with a top-loading cartridge slot, a prominent red power indicator, and two controller ports. Its design includes stereo audio output through a headphone jack with volume slider, and composite video as standard, with RGB available through the DIN AV connector. These originally launched in Japan in 1989 with PAL models releasing in 1991.

Internally the console is powered by a Motorola 68000 CPU running at 7.67 MHz, supported by a Zilog Z80 co-processor for audio and backward compatibility with Master System titles with an appropriate cartridge adaptor. Graphics are handled by Sega’s custom VDP, offering a resolution of 320×224 pixels, a palette of 512 colours, and up to 64 sprites on-screen. Audio combines the Yamaha YM2612 FM synthesiser with the SN76489 PSG, enabling rich multi-channel sound. Revisions overtime move simplified the internal engineering but the components mostly remained the same.

The system outputs composite video and RGB, with minor regional variations in branding (Mega Drive in Japan and Europe, Genesis in North America). Storage is cartridge-based, with capacities expanding from early 4 Mb ROMs to 16 Mb and beyond in later releases. Accessories include the Mega CD and 32X add-ons, which extend functionality with optical media and enhanced 3D capabilities.

Upon release the Mega Drive was praised for its arcade-style performance and extensive third-party support, positioning Sega as a major competitor to Nintendo ahead of their Super Famicom. It was one of the defining consoles of the 16-bit era, featuring fast graphics, an iconic library, and a cultural impact that shaped the early 1990s gaming landscape.
